Product Summary
The AL60A-048L-050F20 is an Astec Integrated Power Module.
Parametrics
AL60A-048L-050F20 environmental specifications: (1)Storage temperature: -40℃ to +105℃; (2)Overtemperature shutdown: 90℃ typical; (3)MTBF: > 1 million hours (50℃ baseplate).
Features
AL60A-048L-050F20 features: (1)High efficiency - up to 86%; (2)500 KHz fixed frequency; (3)100℃ baseplate operating temperature (with no derating); (4)Low output ripple and noise; (5)Excellent transient response; (6)Safety isolated low voltage control and monitoring; (7)High reliability; (8)Wide input voltage range; (9)Parallelable with accurate current sharing; (10)Adjustable output voltage and current limit; (11)Regulation to zero load; (12)Temperature monitor output.

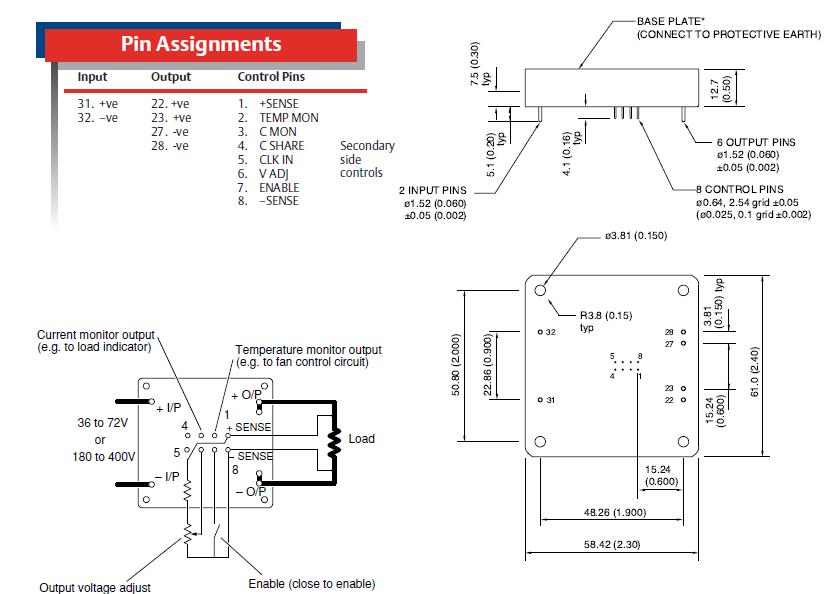

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AL60A-048L-050F20 |
|
CONV DC-DC 120W 48VIN 5.0V 20A |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
AL60A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AL60A-048L-022F30 |
|
CONV DC-DC 120W 48VIN 2.2V 30A |
Data Sheet |
Negotiable |
|
||||
|
AL60A-048L-033F25 |
|
CONV DC-DC 120W 48VIN 3.3V 25A |
Data Sheet |
Negotiable |
|
||||
|
AL60A-048L-050F10 |
|
CONV DC-DC 120W 48VIN 5.0V 10A |
Data Sheet |
Negotiable |
|
||||
|
AL60A-048L-050F20 |
|
CONV DC-DC 120W 48VIN 5.0V 20A |
Data Sheet |
Negotiable |
|
||||
|
AL60A-048L-120F06 |
|
CONV DC-DC 120W 48VIN 12.0V 6A |
Data Sheet |
Negotiable |
|
||||
