Product Summary

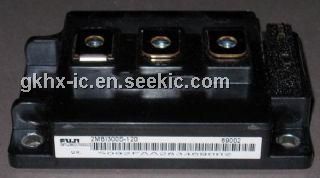

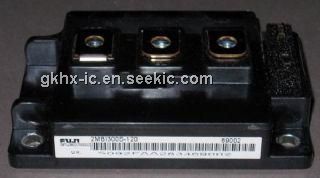

The 2MBI300S-120 is an IGBT Module. Applications include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.

Parametrics

2MBI300S-120 absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)Gate-emitter voltage: ±20V; (3)Maximum power dissipation: 2500W; (4)operating temperature: +150℃; (5)Storage temperature: –40 ~ +125℃; (6)Isolation voltage: 2500V.

Features

2MBI300S-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

2MBI300S-120 Equivalent Circuit Schematic
