Product Summary

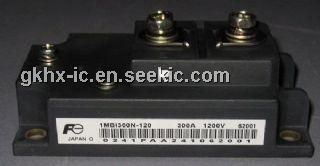

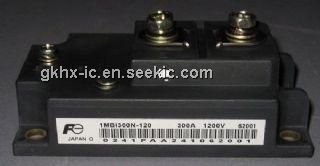

The 1MBI300N-120 is an IGBT module. Its applications include High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
1MBI300N-120 absolute maximum ratings: (1)Collector-Emitter Voltage: 1200 V; (2)Gate -Emitter Voltage: ± 20 V; (3)Max. Power Dissipation: 2100 W; (4)Operating Temperature: +150℃; (5)Storage Temperature: -40 ~ +125℃; (6)Isolation Voltage A.C. 1min.: 2500 V.
Features
1MBI300N-120 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 1MBI300N-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
