Product Summary

The LQ080T5GG01S is a Color TFT-LCD Module.

Parametrics

LQ080T5GG01S absolute maximum ratings: (1)Display size: 20cm; (2)Brightness: 400 cd/m2; (3)Power consumption: 5.9 W; (4)Operating temperature: -30 to +85℃; (5)Storage temperature: -30 to +85℃.

Features

LQ080T5GG01S features: (1)20 cm display size; (2)Wide screen (16 : 9); (3)Wide temperature range; (4)Thin structure (8.0 mm).

Diagrams

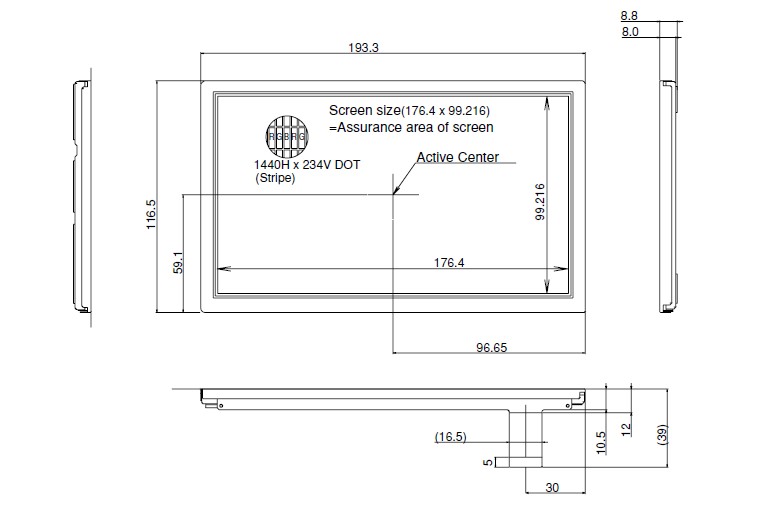

LQ080T5GG01S Outline Dimensions
