Product Summary

The SPS-61T-250 is a connector for tabs.

Parametrics

SPS-61T-250 absolute maximum ratings: (1)Current rating: 25A; (2)Voltage rating: 250V; (3)Temperature range: -40 to +105℃; (4)Contact resistance: initial value/3mΩ max.; (5)Insulation resistance: 1000MΩ min.; (6)Withstanding voltage: 2000V.

Features

SPS-61T-250 features: (1)Secure locking, easy insertion; (2)Stable contact performance; (3)Mis-insertion prevention mechanism and housing lance.

Diagrams

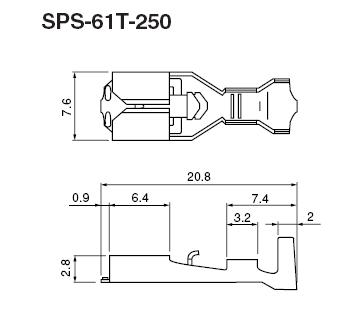

SPS-61T-250 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SPS-61T-250
SPS-61T-250

CONN FEMALE UNINSL 14-18AWG .250
Data Sheet
0-5000: $0.03
