Product Summary
The REF1004C-2.5 is a terminal bandgap reference diode designed for high accuracy with outstanding temperature characteristics at low operating currents. Prior to the introduction of the
REF1004C-2.5 Micropower Voltage References, accuracy and stability specifications could only be attained by expensive screening of standard devices. The REF1004C-2.5 is a cost effective solution when reference voltage accuracy, low power, and long term temperature stability are required. The applications of the REF1004C-2.5 include battery powered test equipment, portable medical instrumentation, portable communications devices, A/D and D/A converters, notebook and palmtop computers
Parametrics
REF1004C-2.5 absolute maximum ratings: (1)Reverse Breakdown Current: 30mA; (2)Forward Current: 10mA; (3)Operating Temperature Range: 0℃ to +70℃; (4)Storage Temperature:–65℃ to +150℃; (5)Lead Temperature (soldering, 10s): +300℃.
Features
REF1004C-2.5 features: (1)initial accuracy: REF1004-1.2 ±4mV; REF1004-2.5 ±20mV; (2)minimum operating current: REF1004-1.2 10mA; REF1004-2.5 20mA; (3)excellent long term temperature stability; (4)very low dynamic impedance; (5)operates up to 20mA; (6)package: 8-Lead SOIC.

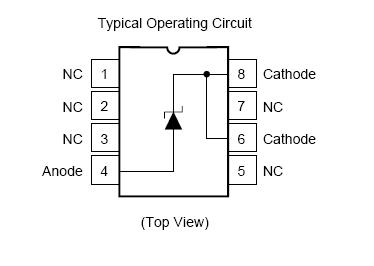

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
REF1004C-2.5 |
Texas Instruments |
Voltage & Current References Micropower Voltage Reference |
Data Sheet |
|
|
|||||||||||||
REF1004C-2.5/2K5 |
Texas Instruments |
Voltage & Current References Micropower Voltage Reference |
Data Sheet |
|
|
|||||||||||||
REF1004C-2.5E4 |
Texas Instruments |
Voltage & Current References Micropower Voltage Reference |
Data Sheet |
|
|
|||||||||||||
REF1004C-2.5/2K5E4 |
Texas Instruments |
Voltage & Current References Micropower Voltage Reference |
Data Sheet |
|
|
