Product Summary
The NTD3055L104G is a Power MOSFET. Its applications include power supplies, converters, power motor controls, bridge circuits.
Parametrics
NTD3055L104G absolute maximum ratings: (1)Drain-to-source voltage: 60Vdc; (2)Drain-to-gate voltage: 60Vdc; (3)Gate-to-source voltage, continuous-non-repetitive, VGS: ±15Vdc; (4)Drain current, continuous @ TA=25℃, ID: 12Adc; (5)Total power dissipation @ TA=25℃, PD: 48W; (6)Operating and storage temperature range, TJ, Tstg: -55 to +175℃; (7)Single pulse drain-to-source avalanche, EAS: 61mJ; (8)Maximum lead temperature for soldering, TL: 260℃.
Features
NTD3055L104G features: (1)Lower RDS; (2)Lower VDS; (3)Tighter VSD specification; (4)Lower diode reverse recovery time; (5)Lower reverse recovery stored charge; (6)AEC Q101 qualified-NTDV3055L104; (7)These devices are Pb-free and are RoHS compliant.

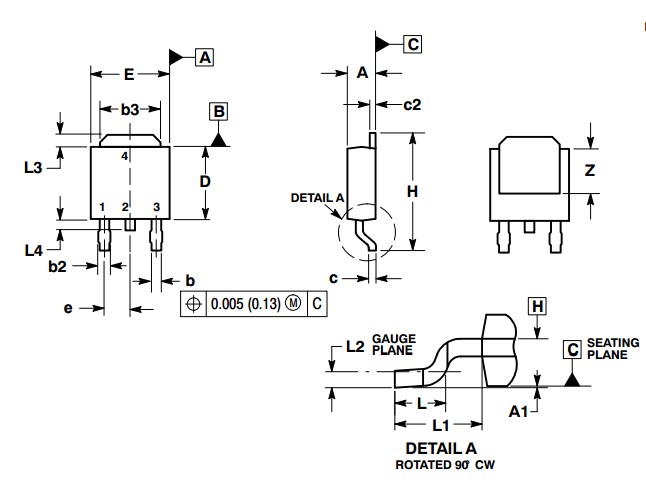

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NTD3055L104G |
ON Semiconductor |
MOSFET 60V 12A N-Channel |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
NTD3055-094 |
ON Semiconductor |
MOSFET 60V 12A N-Channel |
Data Sheet |
Negotiable |
|
||||||||||||
|
NTD3055-094-1G |
ON Semiconductor |
MOSFET 60V 12A N-Channel |
Data Sheet |
|
|
||||||||||||
|
NTD3055-094G |
ON Semiconductor |
MOSFET 60V 12A N-Channel |
Data Sheet |
Negotiable |
|
||||||||||||
|
NTD3055-094T4 |
ON Semiconductor |
MOSFET 60V 12A N-Channel |
Data Sheet |
Negotiable |
|
||||||||||||
|
NTD3055-150 |
ON Semiconductor |
MOSFET 60V 9A N-Channel |
Data Sheet |
Negotiable |
|
||||||||||||
|
NTD3055-150T4 |
ON Semiconductor |
MOSFET 60V 9A N-Channel |
Data Sheet |
Negotiable |
|
||||||||||||
