Product Summary

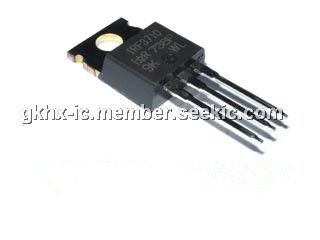

The IRF3710 is an Advanced HEXFET Power MOSFET from International Rectifier. The IRF3710 utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that the IRF3710 is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

IRF3710 absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 57 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 40 A; (3)Pulsed Drain Current, IDM: 230 A; (4)PD @TC = 25℃ Power Dissipation: 200 W; (5)Linear Derating Factor: 1.3 W/℃; (6)Gate-to-Source Voltage, VGS: ±20 V; (7)Avalanche Current, IAR: 28 A; (8)Repetitive Avalanche Energy, EAR: 20 mJ; (9)Peak Diode Recovery dv/dt, dv/dt: 5.8 V/ns; (10)Operating Junction and Storage Temperature Range, TJ, TSTG: -55 to +175℃; (11)Soldering Temperature, for 10 seconds 300 (1.6mm from case)℃; (12)Mounting torque, 6-32 or M3 srew: 10 lbf•in (1.1N•m).

Features

IRF3710 features: (1)Advanced Process Technology; (2)Ultra low on-resistance; (3)Dynamic dv/dt ratings; (4)175℃ Operating Temperature; (5)Fast Switching; (6)Fully Avalanche Rated; (7)Lead-free.

Diagrams

IRF3710 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRF3710
IRF3710
International Rectifier
MOSFET N-CH 100V 57A TO-220AB
Data Sheet
1-200: $1.27
IRF3710L
IRF3710L

MOSFET N-CH 100V 57A TO-262
Data Sheet
Negotiable
IRF3710LPBF
IRF3710LPBF
International Rectifier
MOSFET MOSFT 100V 57A 23mOhm 86.7nC
Data Sheet
0-1: $2.32
1-25: $1.49
25-100: $1.08
100-250: $1.01
IRF3710PBF
IRF3710PBF
International Rectifier
MOSFET MOSFT 100V 57A 23mOhm 86.7nC
Data Sheet
0-1: $1.96
1-25: $1.27
25-100: $0.91
100-250: $0.86
IRF3710S
IRF3710S
International Rectifier
MOSFET N-CH 100V 57A D2PAK
Data Sheet
1-200: $1.24
IRF3710S/L
IRF3710S/L
Other

Data Sheet
Negotiable
IRF3710STRLPBF
IRF3710STRLPBF
International Rectifier
MOSFET MOSFT 100V 57A 23mOhm 86.7nC
Data Sheet
0-1: $2.45
1-25: $1.59
25-100: $1.14
100-250: $1.07
IRF3710ZGPBF
IRF3710ZGPBF
International Rectifier
MOSFET
Data Sheet
0-1: $1.90
1-25: $1.23
25-100: $0.89
100-250: $0.83
