Product Summary

The HEF4030 is a Quadruple exclusive-OR gate. The HEF4030 provides the positive quadruple exclusive-OR function. The outputs are fully buffered for highest noise immunity and pattern insensitivity of output impedance.

Parametrics

HEF4030 absolute maximum ratings: (1)Propagation delays In → On HIGH to LOW: 35ns type @ VDD =10V; (2)Propagation delays In → On LOW to HIGH: 30ns type @ VDD =10V; (3) Output transition times HIGH to LOW: 30ns type @ VDD =10V; (4) Output transition times LOW to HIGH: 30ns type @ VDD =10V.

Features

HEF4030 features: (1)Propagation delays In → On HIGH to LOW: 85ns type @ VDD =5V; (2)Propagation delays In → On LOW to HIGH: 75ns type @ VDD =5V; (3)Output transition times HIGH to LOW: 60ns type @ VDD =5V; (4)Output transition times LOW to HIGH: 60ns type @ VDD =5V.

Diagrams

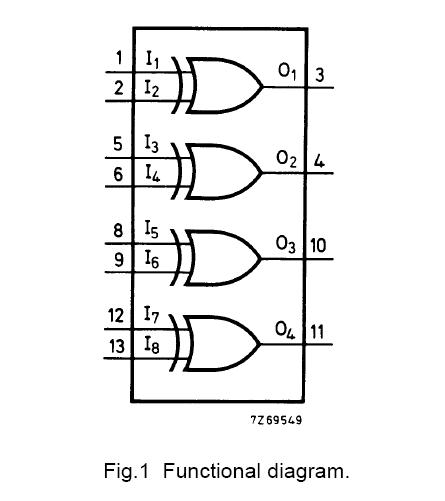

HEF4030 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HEF4030BP,652
HEF4030BP,652
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD XCLSVE-OR GATE
Data Sheet
0-1: $0.27
1-25: $0.24
25-100: $0.20
100-250: $0.18
HEF4030BT,653
HEF4030BT,653
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUADRUPLE EXCLUSIVE OR GATE
Data Sheet
0-1: $0.22
1-25: $0.19
25-100: $0.11
100-250: $0.09
HEF4030BT,652
HEF4030BT,652
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD EXCL-OR GATE
Data Sheet
0-1: $0.23
1-25: $0.20
25-100: $0.17
100-250: $0.15
HEF4030B
HEF4030B
Other

Data Sheet
Negotiable
