Product Summary

The GA1621 is a 128 dots (32x4), memory mapping, and multi-function LCD driver. The S/W con-figuration feature of the GA1621 makes it suitable for multiple LCD applications including LCD modules and display subsystems. Only three or four lines are required for the interface between the host controller and the GA1621. The GA1621 contains a power down command to reduce power consumption.

Parametrics

GA1621 absolute maximum ratings: (1)Storage Temperature: -50℃ to 125℃; (2)Supply Voltage: -0.3V to 5.5V; (3)Operating Temperature: -25℃ to 75℃; (4)Input Voltage: VSS - 0.3V to VDD + 0.3V.

Features

GA1621 features: (1)Operating voltage: 2.4V to 5.2V; (2)Software configuration feature; (3)Built-in 256kHz RC oscillator; (4)Data mode and command mode instructions; (5)8 kinds of time base/WDT clock sources; (6)R/W address auto increment; (7)32x4 LCD driver; (8)Three data accessing modes; (9)3-wire serial interface; (10)Power down command reduces power Consumption; (11)Internal LCD driving frequency source.

Diagrams

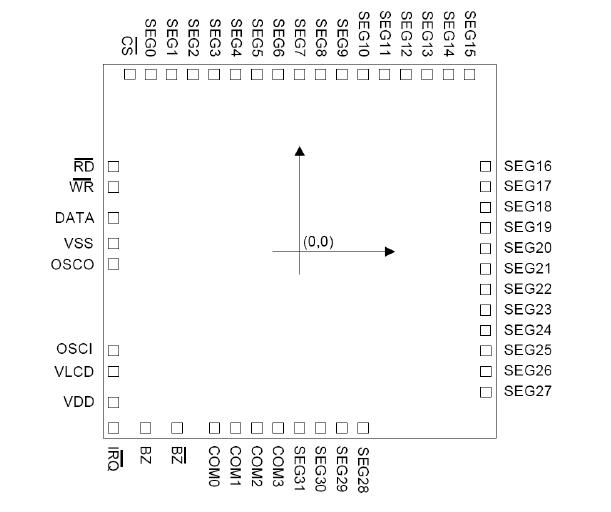

GA1621 Pin Configuration
