Product Summary
The FP5451ADR is a dual channel PWM control IC with SCP/DTC function. It is composed of dual open collector transistor pulse-width-modulation control circuits with two error amplifiers and dead-time comparators (DTC), the FP5451ADR contains a 2.5V precision voltage reference regulator, under-voltage lockout circuit (UVLO), short circuit protection circuit (SCP), applied to offer space and low cost in many applications such as the DC/DC converter and backlight inverter. Using few external components, FP5451ADR, a high performance integrated IC, is designed for a control circuit. The circuit diagram of the typical application example is as below. The applications of the FP5451ADR include Dual Output Switch Regulator, Backlight Inverter, and LCD Monitor.
Parametrics
FP5451ADR absolute maximum ratings: (1)Supply Voltage (Vcc): +40V; (2)Differential Input Voltage (Vid): +20V; (3)Collector Output Voltage (Vo): +40V; (4)Collector Output Current (Io): +150mA; (5)Maximum Junction Temperature (Tj): 150℃; (6)Thermal Resistance Junction to Ambient (SOP package): 175℃/W; (7)Power Dissipation: 650mW; (8)Operating Temperature Range: -20℃ to 85℃; (9)Storage Temperature Range: -65℃ to 150℃; (10)Lead Temperature (soldering, 10 sec): +230℃.
Features
FP5451ADR features: (1)Fixed Reference Voltage: 2.5V; (2)Reference Voltage Precision: 1%; (3)Output sink current up to 100mA; (4)Low quiescent supply current; (5)Wide operating voltage range: 4 to 40V; (6)Variable dead-time control (DTC); (7)UVLO protection function; (8)SCP protection function (Typ. 1.3V); (9)Oscillator Frequency: Max. 500KHz; (10) Package: SOP16 / PDIP16.

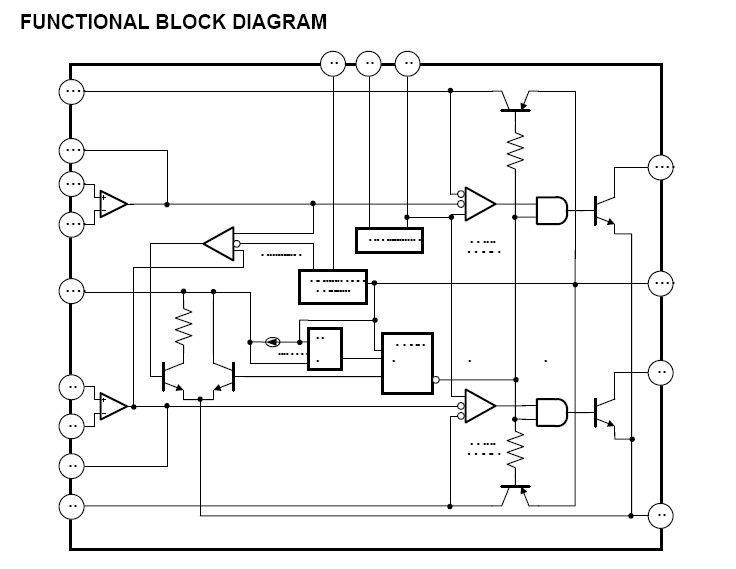

Diagrams
 |
