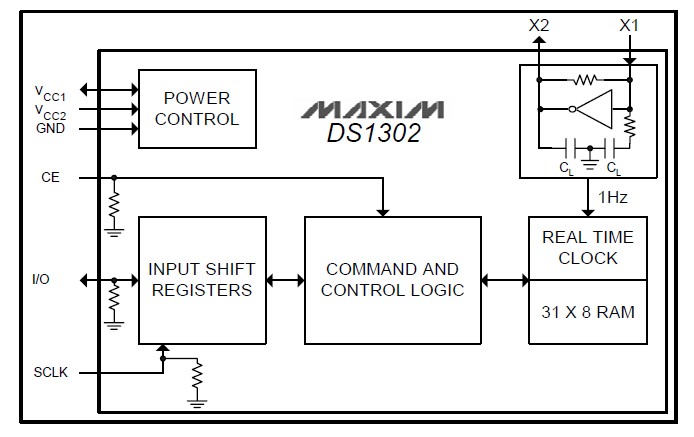

The DS1302SN+T is a trickle-charge time keeping chip. The DS1302SN+T contains a real-time clock / calendar and 31 bytes of static RAM. It communicates with a microprocessor via a simple serial interface. Interfacing the DS1302SN+T with a microprocessor is simplified by using synchronous serial communication. Only three wires are required to communicate with the clock/RAM: CE, I/O (data line), and SCLK (serial clock). Data can be transferred to and from the clock/RAM 1 byte at a time or in a burst of up to 31 bytes. The DS1302 is designed to operate on very low power and retain data and clock information on less than 1μW.
Parametrics
DS1302SN+T absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -0.5V to +7.0V ; (2)Operating Temperature Range, Commercial: 0℃ to +70℃ ; (3)Operating Temperature Range, Industrial (IND): -40℃ to +85℃; (4)Storage Temperature Range: -55℃ to +125℃ ; (5)Soldering Temperature (leads, 10 seconds): 260℃; (6)Soldering Temperature (surface mount): See IPC/JEDEC J-STD-020.
Features
DS1302SN+T features: (1)Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100 ; (2)31 x 8 RAM for Scratchpad Data Storage ; (3)Serial I/O for Minimum Pin Count ; (4)2.0V to 5.5V Full Operation ; (5)Uses Less than 300nA at 2.0V ; (6)Single-Byte or Multiple-Byte (Burst Mode) Data Transfer for Read or Write of Clock or RAM Data ; (7)8-Pin DIP or Optional 8-Pin SO for Surface Mount ; (8)Simple 3-Wire Interface ; (9)TTL-Compatible (VCC = 5V) ; (10)Optional Industrial Temperature Range: -40℃ to +85℃ ; (11)DS1202 Compatible ; (12)Underwriters Laboratory (UL) Recognized.
