CS5341-CZZR

CS5341-CZZR, Multi-bit Audio A/D Converter, TSSOP-16, 6V, 10mA, Cirrus Logic

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.78~4.78 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
2000 ~ 4000 :	4.78 / Piece

PartNumber:: CS5341-CZZR

Brand:: Cirrus Logic - Cirrus | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-16

From Other Seller

Part Number:CS5341-CZZR
US $4.78 - 4.78
Quantity:

piece

Product Summary

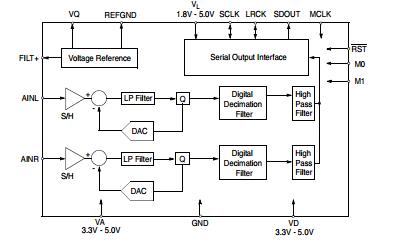

The CS5341-CZZR is a complete analog-to-digital converter for digital audio systems. It performs sampling, analog-to-digital conversion, and anti-alias filtering, generating 24-bit values for both left and right inputs in serial form at sample rates up to 200 kHz per channel. The CS5341-CZZR uses a 5th-order, multi-bit Delta-Sigma modulator followed by digital filtering and decimation, which removes the need for an external anti-alias filter.

Parametrics

CS5341-CZZR absolute maximum ratings: (1)DC Power Supplies: Analog, VA: -0.3 to +6.0V; Logic, VL: -0.3 to +6.0V; Digital, VD: -0.3 to +6.0V; (2)Input Current, Iin: ±10 mA; (3)Analog Input Voltage, VIN: GND -0.7 to VA +0.7 V; (4)Digital Input Voltage, VIND: -0.7 to VL +0.7 V; (5)Ambient Operating Temperature, (Power Applied) TA: -50 to +95℃; (6)Storage Temperature, Tstg: -65 to +150℃.

Features

CS5341-CZZR features: (1)Advanced Multi-bit Delta-Sigma Architecture; (2)24-bit Conversion; (3)Supports all audio sample rates including 192 kHz; (4)105 dB Dynamic Range at 5 V -98 dB THD+N; (5)High-pass Filter to Remove DC Offsets; (6)Analog/digital Core Supplies from 3.3 V to 5V; (7)Supports logic levels between 1.8 V and 5 V; (8)Low-latency Digital Filter; (9)Auto-mode Selection.
