Product Summary

The 74AHCT1G08GV is a high-speed Si-gate CMOS device. The 74AHCT1G08GV provides the 2-input AND function.

Parametrics

74AHCT1G08GV absolute maximum ratings: (1)VCC supply voltage: -0.5 to +7.0 V; (2)VI input voltage: -0.5 to +7.0 V; (3)IIK input diode current VI＜-0.5V: -20mA; (4)IOK output diode current VO＜-0.5V or VO＞ VCC + 0.5V:±20mA; (5)IO output source or sink current -0.5V＜VO＜VCC + 0.5V:±25mA; (6)ICC VCC or GND current:±75mA; (7)Tstg storage temperature: -65 to +150℃; (8)PD power dissipation per package for temperature range from -40 to +125℃: 250mW.

Features

74AHCT1G08GV features: (1)Symmetrical output impedance; (2)High noise immunity; (3)ESD protection; (4)Low power dissipation; (5)Balanced propagation delays; (6)Very small 5-pin package; (7)Output capability: standard; (8)Specified from -40 to +125℃.

Diagrams

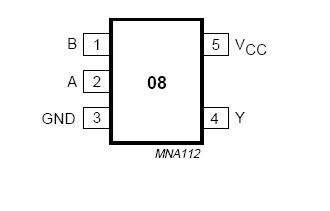

74AHCT1G08GV Pin Configuration
